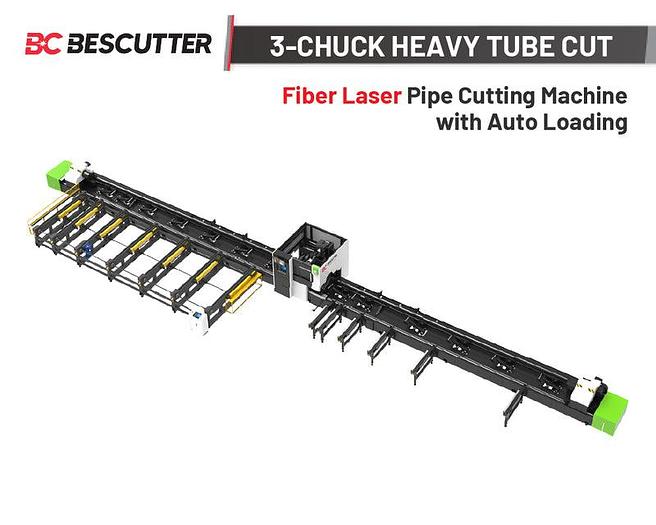

Hytube 3Chuck TUBE CUTTER 2000W - 6000W | Fiber Laser Pipe Cutting Machine with Auto Loading
Hytube 3Chuck TUBE CUTTER 2000W - 6000W | Fiber Laser Pipe Cutting Machine with Auto Loading
$400,000 (USD)
orCall 804.598.1780
Specifications
| Manufacturer | Bescutter |
| Condition | New |
| Tube range (length) | 29.5' (9000 mm) |
| Tube diameter | Square Tube Side: 0.78"- 8.86" (20- 225 mm) / Round Tube Dia: 0.59"- 12.2" (15- 310 mm) |
| X-axis | 29.5' (9000 mm) |
| Y-axis | 8.86" (225 mm) |
| Auto-loading tube length | 157"-354" (4000-9000mm) / tube length detection |
| Un-loading tube length | 0- 236" (0-6000mm) |
| Cnc system | FSCUT5000 |
| X, y-axis positioning accuracy | ±0.05 mm/1000 mm |
| X, y-axis re-positioning accuracy | ±0.03 mm |
| A, b-axis positioning accuracy | ±30" |
| A, b-axis re-positioning accuracy | ±10" |
| X, y-axis max positioning speed | 100 m/min |
| Max positioning speed | 60 rpm |
| Laser resonator | IPG 2 KW (Germany Brand) |
| Optional laser wattage | 2 KW/ 3 KW/ 4 KW/ 6 KW |
| Laser head | RayTools |
| Machine weight | 28,660 lbs (13,000 kg) |
| Dimensions (l x w x h)/auto-loading not included | 984"x 169" x 110" (25000 x 4300 x 2800 mm) |
| Dimensions (l x w x h)/ auto-loading included | 984"x 248" x 110" (25000 x 6300 x 2800 mm) |
