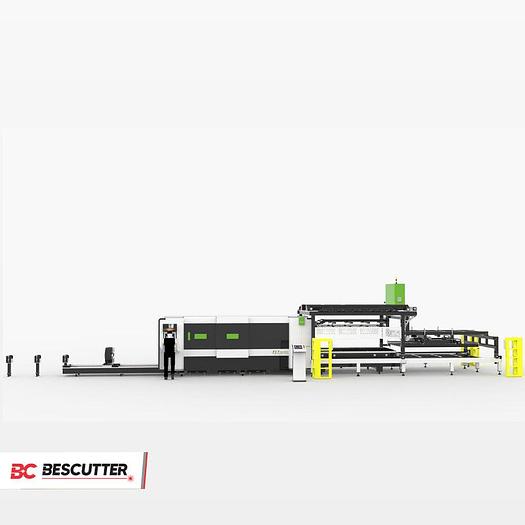

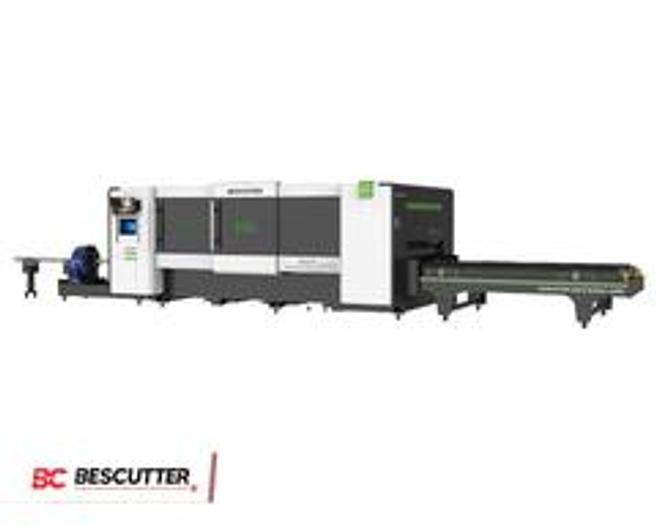

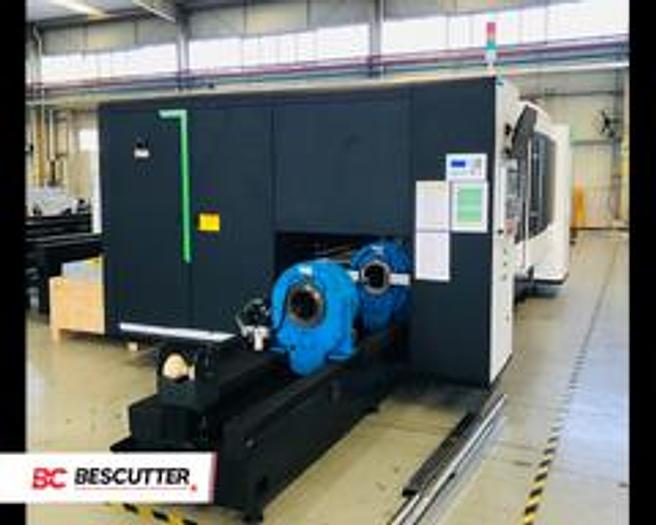

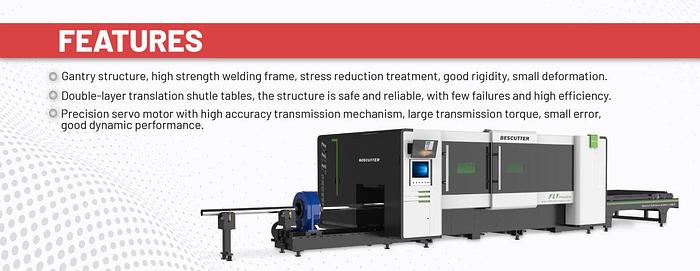

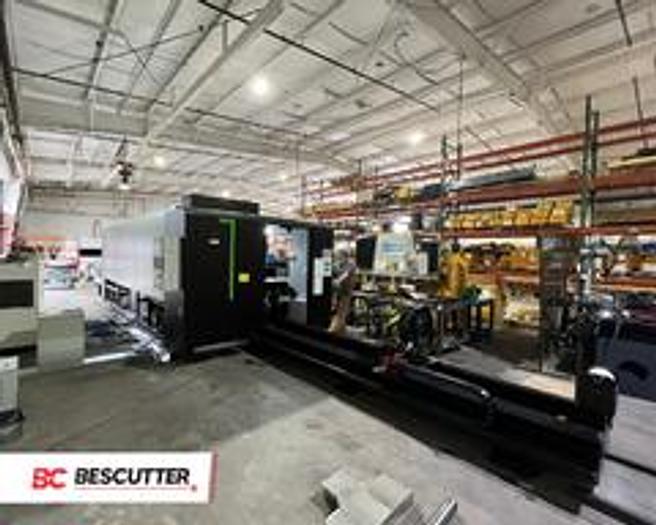

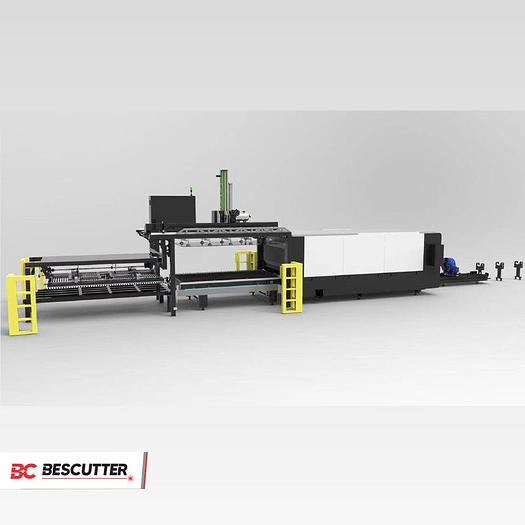

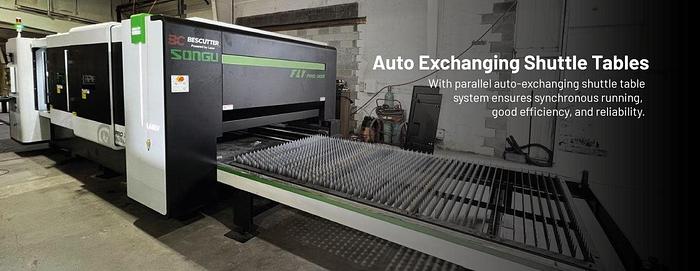

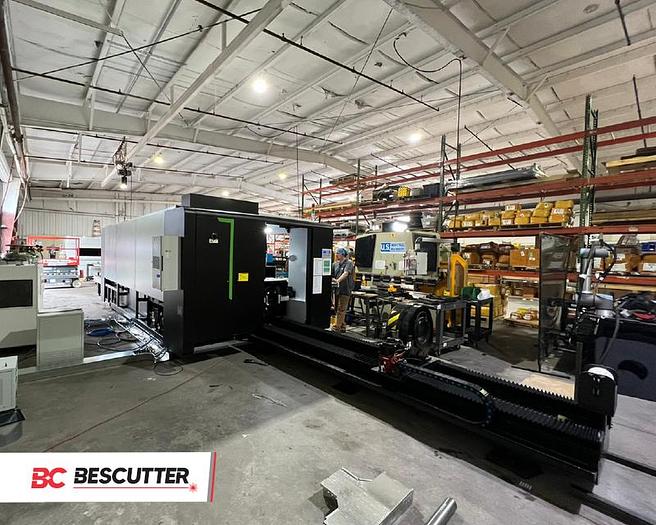

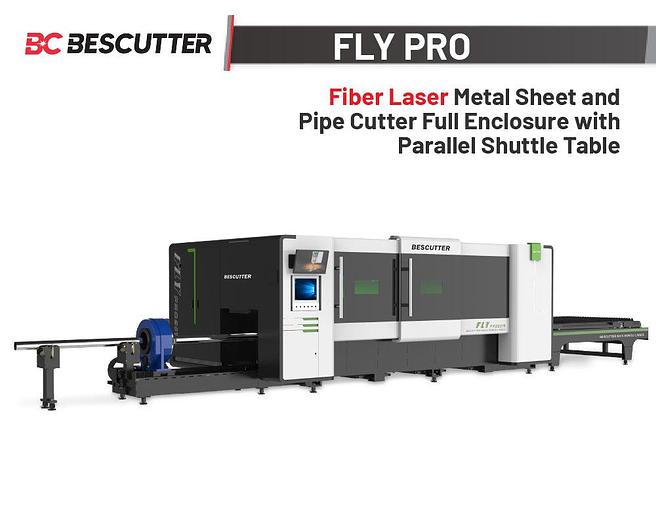

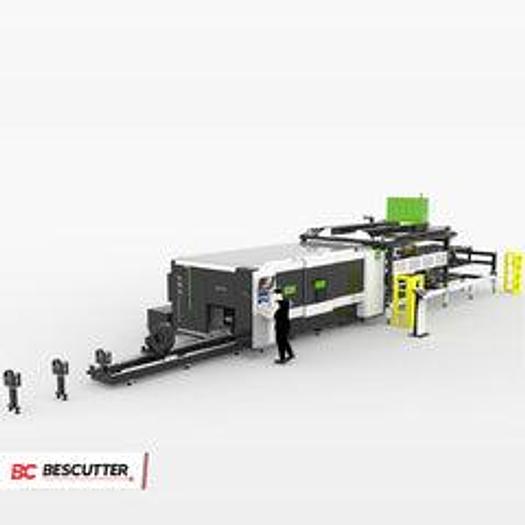

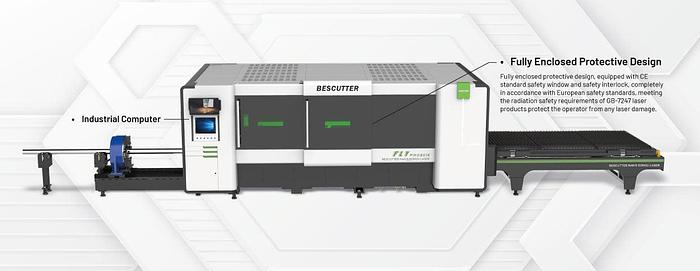

FLY PRO 5'X10' | 1500W - 6000W IPG | Fiber Laser Metal Sheet and Pipe Cutter Full Enclosure with Parallel Shuttle Table

FLY PRO 5'X10' | 1500W - 6000W IPG | Fiber Laser Metal Sheet and Pipe Cutter Full Enclosure with Parallel Shuttle Table

$200,000 (USD)

orCall 804.598.1780

Specifications

ManufacturerBescutter
ConditionNew
Standard working area10' x 5' (3050 x 1550 mm)
Optional working area13' x 6.5' (4000 x 2000 mm)/ 20' x 6.5' (6100 x 2050 mm)/ 26' x 6.5' (8000 x 2000 mm)
Optional laser wattage1500W/ 3000W/ 6000W
X- axis distance120" (3050 mm)
Y- axis distance61" (1550 mm)

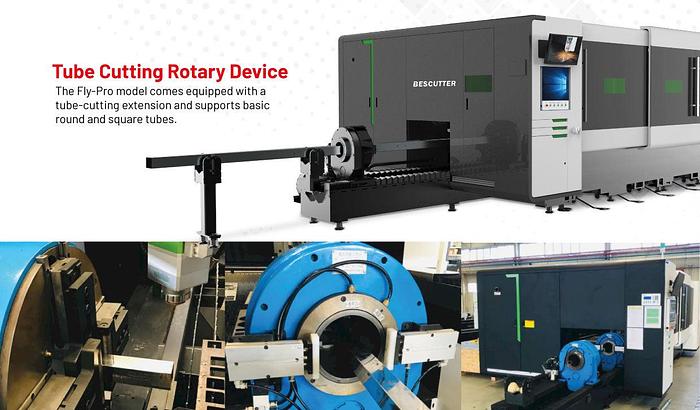

Tube x1- axis distance59" (1500 mm)

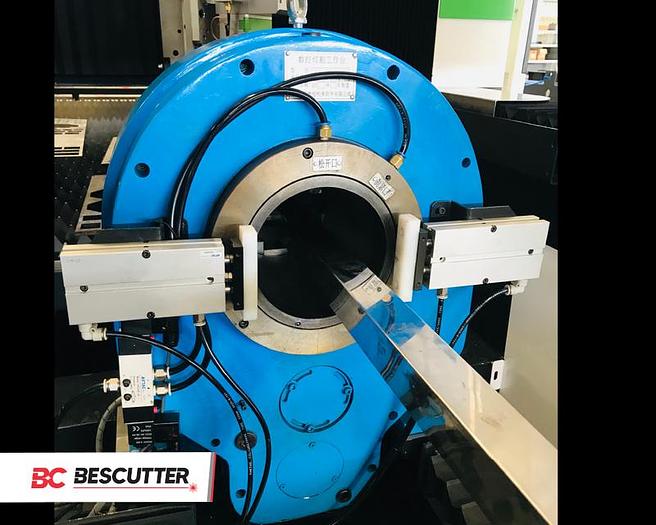

Tube a, b axis- distanceInfinite rotation

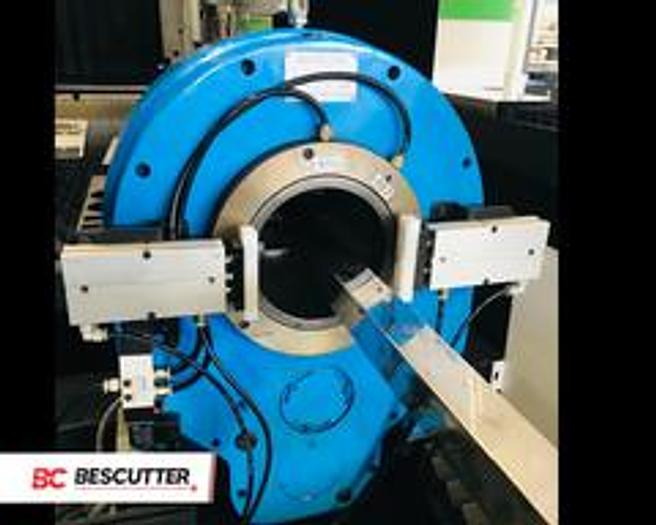

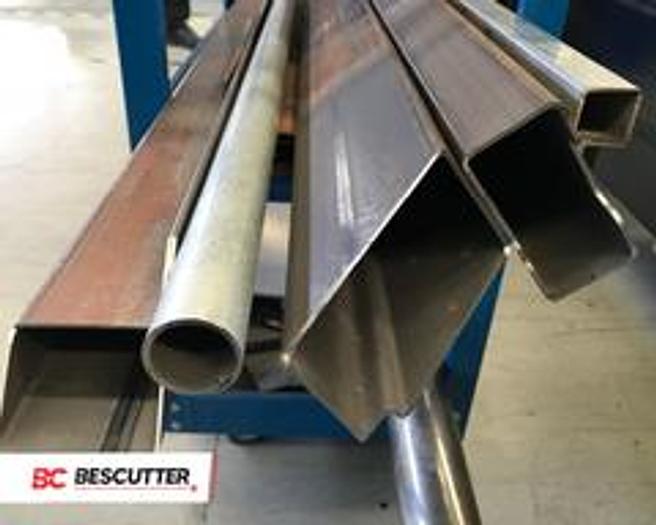

Tube diameterStandard: 0.78"-8.66" (20-220 mm)
Z-axis distance11.8" (300 mm)
X, y two-axis coordinated positioning speed (max)140 m/min
Positioning acceleration (max)1.5 G
Positioning accuracy±0.05 mm/m
Re-positioning accuracy±0.02 mm
Maximum sheet load weightlbs (700 kg)
Maximum pipe load weightAuto-loading: 220 lbs (100 kg)Manual-loading: 440 lbs (200 kg)

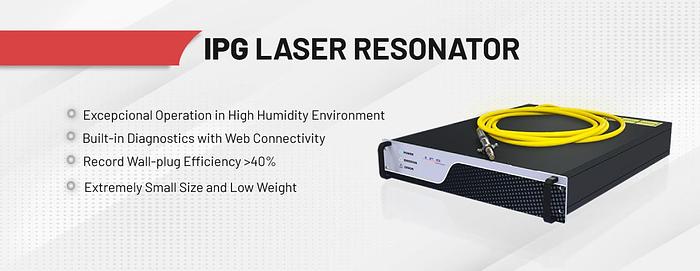

Laser resonatorIPG

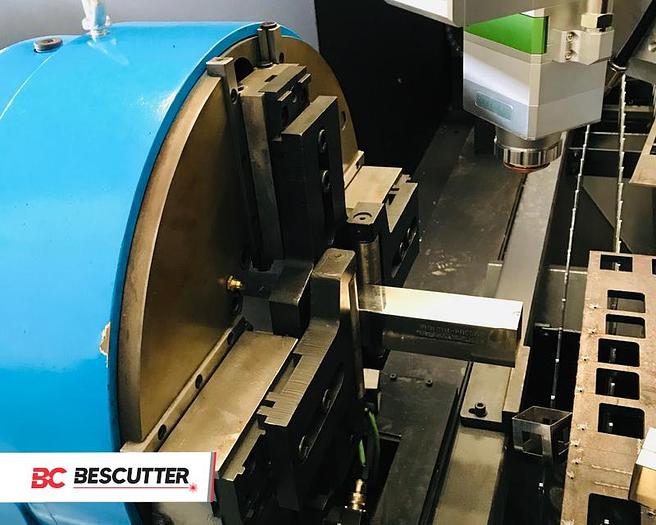

Laser headRaytools: 1.5 -4 KW  Precitec: 6 KW
Controlling systemCypcut
X-y-z servo motorsX-2x2900W;  Y- 1x850W ;  Z-1x750W
Machine body weightApproximately  15,432 lbs (7000 kg)
Pipe rotation weightApproximately 2204 lbs (1000 kg)

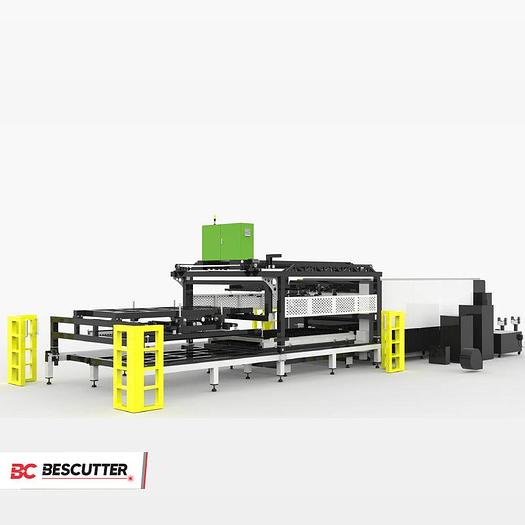

Exchanging shuttle tables & auxiliary weightApproximately 5511 lbs (2500 kg)
DimensionNo pipe cutting 350" x 118" x 80" (8900 x 3000 x 2050 mm)With pipe cutting 429" x 142" x 80" (10900 x 3600 x 2050 mm)
