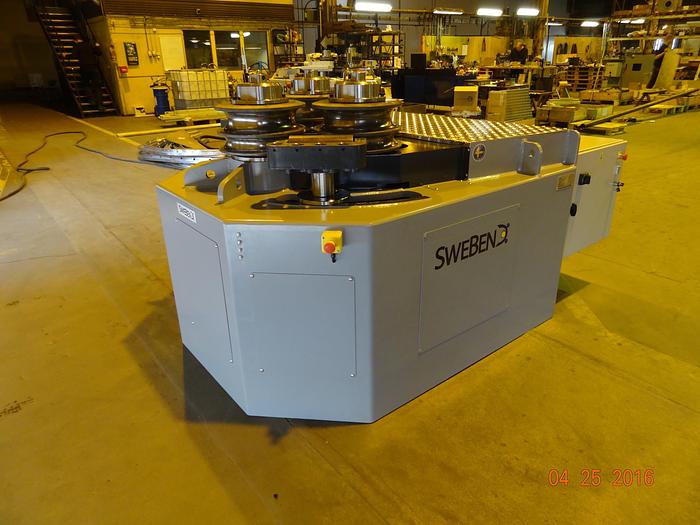

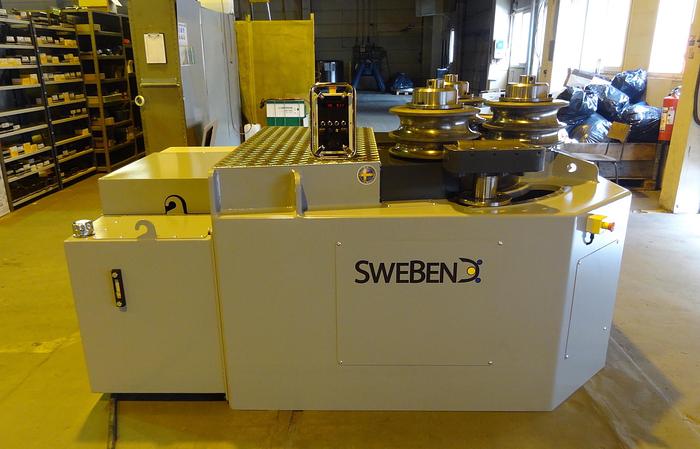

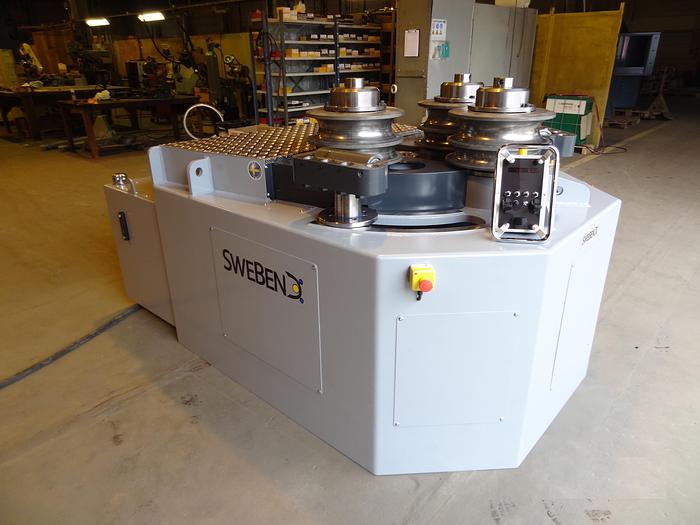

SWEBEND SB3S-140

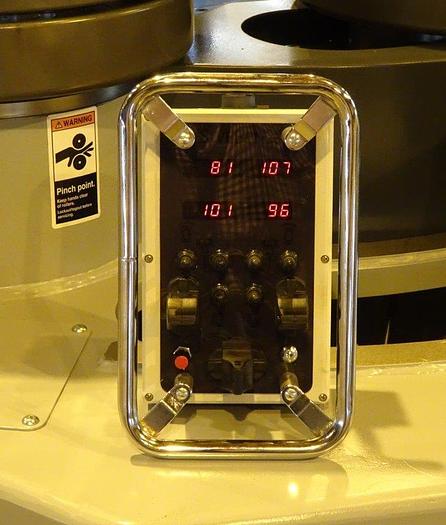

Capacities Bending Capacity, Standard A-36 Steel with Standard Rolls. Bending Capacity, Standard A-36 Steel with Optional Rolls. Standard Rolls for Flat Bar, Angle Iron, T-Bars and Solid Rod. Optional rolls for hollow pipe, beams, channels and other profiles. Product Features 3-Roll Double Pinch Angle Roll Hydraulic Guide Rolls Wireless Bluetooth Control Unit Digital Readouts for Lower Roll Positions Hydraulic Drive with Variable Speed Standard Rolls for Flat Bar, Angle Iron, T-Bars and Solid Rod Compatible with Roundo R-5, R-5S, R-52S Tooling 1 Years Parts and Labor Warranty Description No matter if your profile is flat stock, angle iron, beams, T’s, channels or special sections our SB-series enables you to process sections in the most diverse designs and dimensions possible. Equipped with the strongest bending forces available on the market today, the SB-series forms particularly difficult sections with ease. This is made possible in part through the extremely stable frame construction. Equipped for the most diverse bending tasks… The SB-series is designed to be easily adaptable to virtually any application or requirement since we can expand the standard SB machine with additional equipment. There is a large selection of labor and time saving accessories available. We can optionally equip the SB machines with a rotating device, units for three-dimensional forming or a bending mandrel for small diameters. We also offer advanced CNC systems for applications that need more than a standard digital readout. The ideal solution for your bending requirements…
 The performance of a profile bending machine is measured by the resistance of the cross-section of the profiles it can successfully roll which is known as section modulus and is expressed in square inches (IN2). Information about the bending resistance of structural sections can be obtained from manufacturer’s catalogues, handbooks or suppliers. Our advice is to pay special attention to off center sections, as there is often no data about these profiles. The bending resistance of your profiles is the ideal criteria used to specify the correct machine size. Videos SweBend SB3-140 Angle Roll SWEBEND SB3S 140 ANGLE ROLL Catalogs SWEBEND SB3/SB4 Angle Bending Rolls Catalog Accessories Optional Rolls Round Pipe Rolls – Single or Double Groove.  Hardened Steel or Nylon Square/Rectangular Pipe Rolls – Two Corner Radii of Customer’s Choosing I/U Rolls – Beams and Channels
