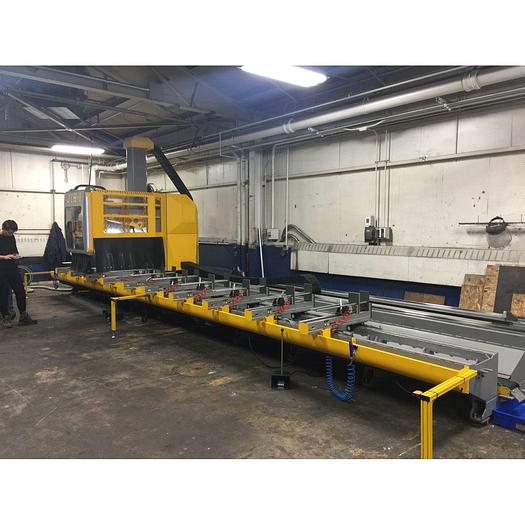

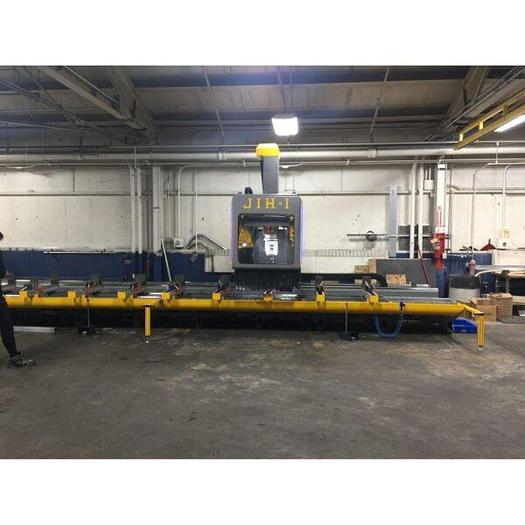

PMI-CNC S-Type 5-Axis Profile Machining Center

Ideal for Applications in the Following Industries: Aerospace Aluminum Extruders Automation companies Automotive Tier 1/2/3 suppliers Curtainwall Door and Window Lighting – Architectural Machine Shops Marine Medical Metal Fabricators Oil and Gas RV and Trailer Solar Structural Fabricators Tradeshow Displays Transportation- Boat and Rail Trailer Industry – Recreational and Commercial The PMI-CNC S-Type 5-Axis Profile Machining Center is built and designed to mill, drill, tap, and saw-cut aluminum and other non-ferrous materials.  (copper, brass, plastics). Standard Features & Equipment: X-axis working lengths 11.5 ft to 24.6 ft (3.5m to 7.5m). Y-axis Travel 27.55 Inches (700mm) – 15.75 Inches (400mm) in 4-axis and 7.87 Inches (200mm) in 4-axis Z-Axis Travel 14 Inches (350mm) A-Axis (4-axis machining) +/- 120 degree rotation of the spindle C-Axis (5-Axis machining) +/- 220 degree movement of the spindle Spindle Speed 20,000 RPM Spindle Motor 10 HP Tool Holder HSK 63 Automatic Tool Changer – 12 Tool Capacity Saw Blade Attachment – 16 Inch Diameter Saw Blade Equipped with Air Clamps Automatic Clamp Movement Dual Zone Processing – Machine working in one zone while the operator is loading/unloading in the other zone Automatic Waylube Lubrication System Mist Lubrication System Mitsubishi Servo Drives/Motors X, Y, Z, A and C-axes are servo controlled
