AL20 Angle Loader

AL20 Angle Loader

orCall 804.598.1780

Description

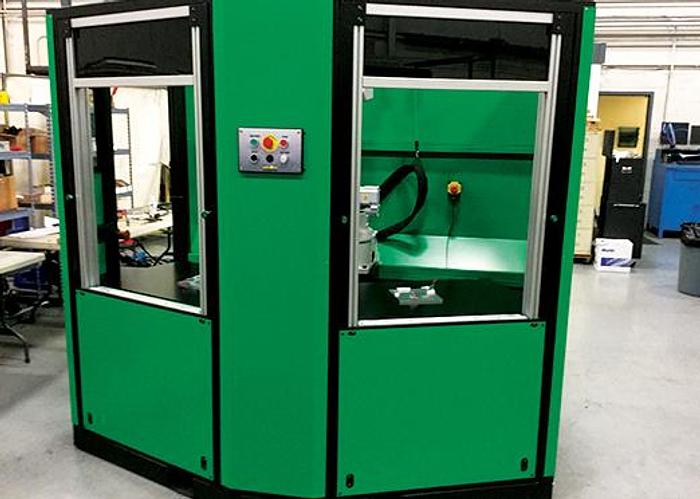

AL20 (Angle Loader) Specifications: Cell Footprint Dimensions: Table Dimensions: The AL20 (two door angle-loader) from Arcrite Automation features two fixed tables guarded by telescoping, pneumatic doors, allowing for a lower loading height and smaller footprint of the cell, while complying with relevant RIA safety standards.  The cell is designed to be highly modular; it is capable of welding small to medium sized parts with any of the major brands of six-axis robotic arms (≤1600mm reach). Additionally, each of the tables can be reconfigured to feature small one or two axis positioners in the event of complex weld path geometry.  There is a door in the back of the cell for easy entry, primarily for maintenance purposes.  The skid and trailer is one solid body, featuring fork lift pockets in the front for easy installation and relocation. The combined trailer at the back of the cell has sheet metal protection, adequate space and built-in wiring paths for most major/standard robot controllers, power/wire supply units, and water coolers necessary making this cell a fully integrated, automated welding solution. < >

Specifications

ManufacturerAcrite Automation
ConditionNew
Length24” (.61m)
Width29” (.74m)
Height83” (2.1m)
Table load height33.5“ (.85m)
