Sunrise IW-110S – Hydraulic Ironworker

Sunrise IW-110S – Hydraulic Ironworker

$30,525 (USD)

orCall 804.598.1780

Description

Capacities Sunrise IW-110S Capacities Product Features Dual-Cylinder – Dual-Operator – Two Foot Pedals Five fully integrated working stations Angle shear Optional Hydraulic Hold-Down Plate Shear Optional Hydraulic Hold-Down Angle shear with no material loss cut and four-edge blades Heavy-duty adjustable punch stripper with visibility window 3 Years Parts / 1 Year Labor Warranty SUNRISE Ironworkers include, as standard, the most complete set of features of any Ironworker brand: 40″ Touch-and-Cut Electric Back Gauge (Optional extensions to 12′ available) Machined Punch Gauge Table with X-Y Positioning System Machined Notcher Gauge Table with X-Y Positioning LED Magnetic-Base Work Light Set of 11 Punches & Dies from American Punch –  3/8″ – 1-1/2″ Reversible Structural Die Block for up to 2″ diameter hole capacity including overhang for angle and channel flange punching Complete tool kit with Manual, CAD Parts Drawings, Electrical and Hydraulic Schematics printed and loaded on a USB Full tank of Hydraulic Oil HD Start-Up Video including safety, maintenance, and operation – Including QR codes to easily access on the side of each machine. SUNRISE offers one of the widest ranges of CNC options today, including semi and fully-automatic punches, automatic shearing, and new complete processing systems. Description SUNRISE Model IW Dual Cylinder Ironworkers range in capacities from 66 to 185 Tons and feature two high-speed cylinders with two-position foot pedals. The dual-cylinder series ironworkers are built with the SUNRISE tradition of well-engineered products for high power, quality, and reliability at an incredible price. SUNRISE ironworkers have two foot pedals so separate punching and shearing operations can be safely performed simultaneously without interference. The low-pressure setting for tool change and spotting provides maximum operator safety. The quick, fully adjustable cylinder stroke and optional deep throat enable mounting a wide range of special equipment such as press brakes, vee-notchers, custom tooling, and more. The large punching base with the “T-slots” provides a solid base for securing the punch tooling and a wide range of optional and custom-designed tooling. SUNRISE Ironworkers offers the lowest cost of ownership among leading ironworker brands due to the integrated spin-on return line filter, bronze bushings and gibings, multi-sided blades and the highest quality components as well a standard three-year parts warranty. Videos Trilogy Machinery and Sunrise Ironworkers – Your Solution Who is Sunrise – Ironworkers, Punching Machines SUNRISE Dual-Cylinder Start-up and Training Video Sunrise Review – Interstate Steel and Metals, Inc. Catalogs SUNRISE Accessory Catalog SUNRISE Main Catalog Accessories Sunrise offers a complete list of accessories and other attachments for your ironworker. Download the latest accessory brochure for the latest information.

Specifications

ManufacturerSunrise Ironworks
ModelSunrise IW-110S
ConditionNew
AvailabilityIn Stock!
Punch110 Tons – 1-1/8″ in 1″| 2″ in 9/16″
Throat12″

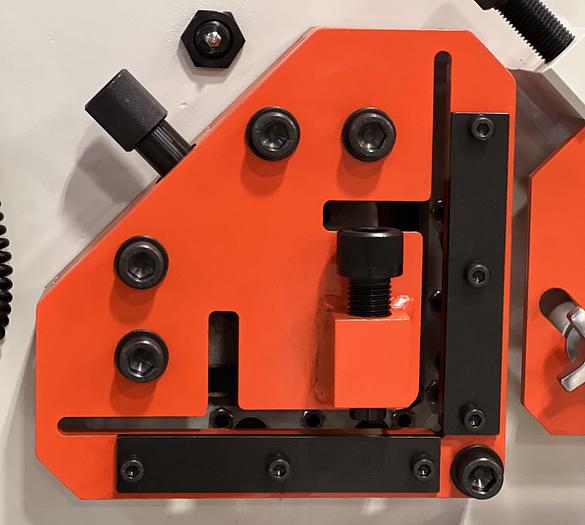

Angle Shear6″ x 6″ x 1/2″ – 3″ x 3″ x 3/8″ Miter

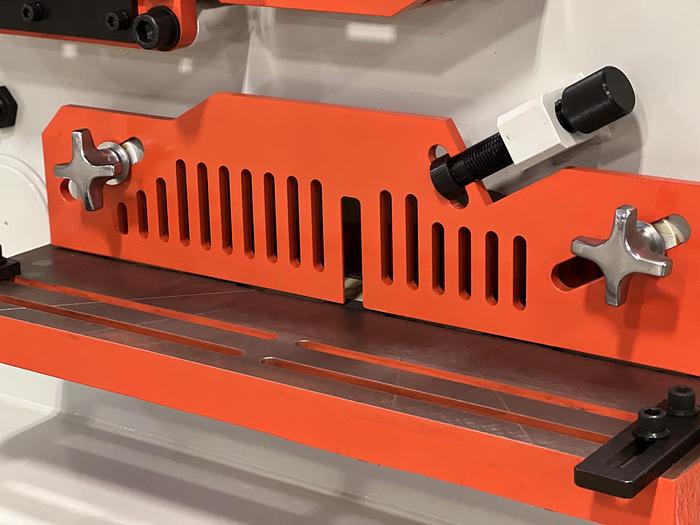

Plate Shear24″ x 5/8″ |  16″ x 3/4″ | 12″ x 1″

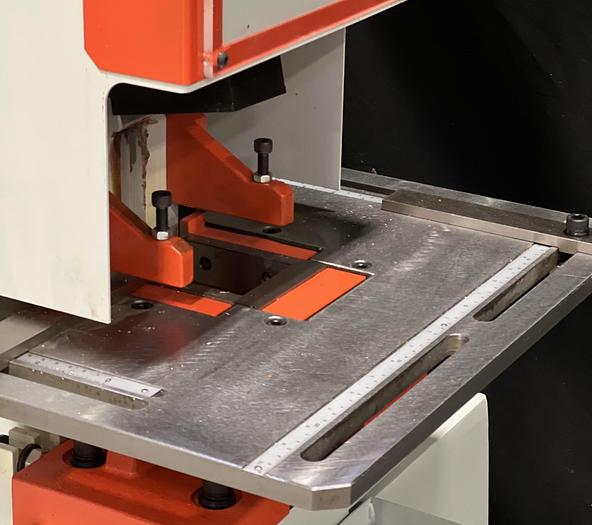

Notcher2-1/2″ x 3-1/2″ x 1/2″
HP10
Power Requirements3 Phase | 220/480
Machine SizeS Model – 6525#
Extensive List of Optional EquipmentAccessory PDF
