LineaTech PRO
LineaTech PRO
orCall 804.598.1780
Description

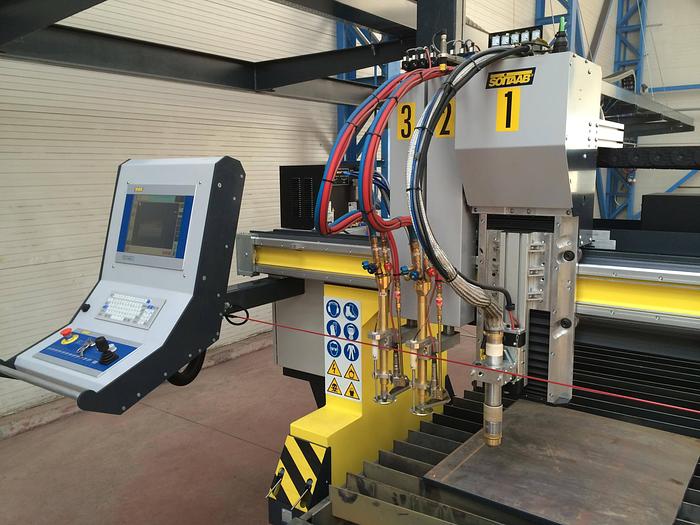

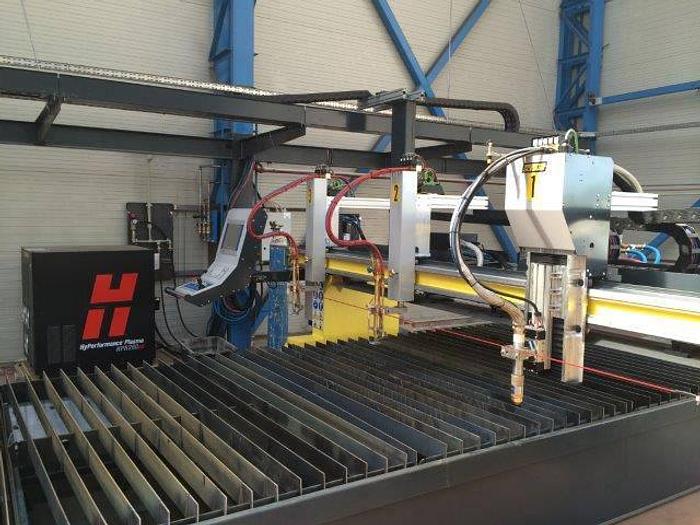

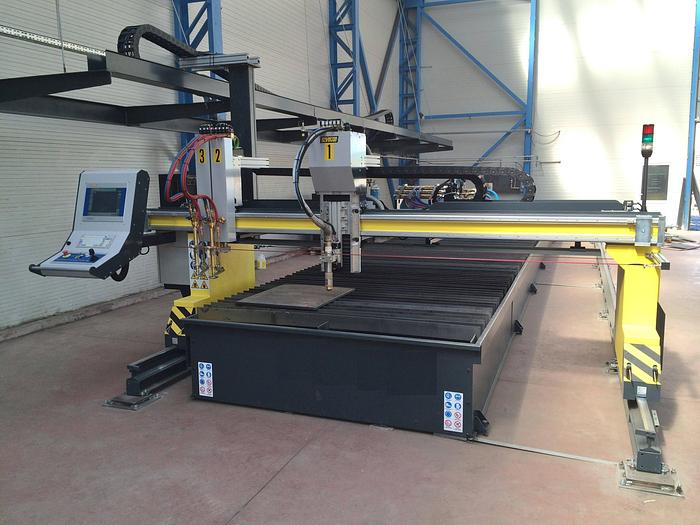

Main Features Dual-side drives with brushless motors and digital drives Smooth rack and pinion motion with preloaded spring assure accurate positioning with minimum backlash Can be equipped with up to 4 oxyfuel stations and 1 plasma station Plasma cutting width up to 3.0 m on a 4.0 m wheelbase Oxyfuel gas distribution by 3 proportional valves controlled by the CNC Automatic gas management controlled by the CNC Library of 30 shapes with fixed cutting parameters expandable to 78 shapes LCD control panel with 15 in TFT color touch screen
Specifications
| Manufacturer | Soitaab |
| Condition | New |
| Rail span (min-max) | 6.5 ft. up to 13 ft. |
| Machine length | 6.5 ft. (2.0 m) |
| Machine useful length with 4 m rails | 6.5 ft. (2.0 m) |
| Longitudinal rails beam support | HEB - STD 120 mm |
| Transversal beam construction | Single |
| Longitudinal Motorization | Dual Side Drives |
| Rack | Vertical teeth |
| Quality standard | ISO 9013 | e EN DIN 28 206 |
| Max number of Master carriage | 1 |
| Max number of Slave carriage (plasma) | 0 |

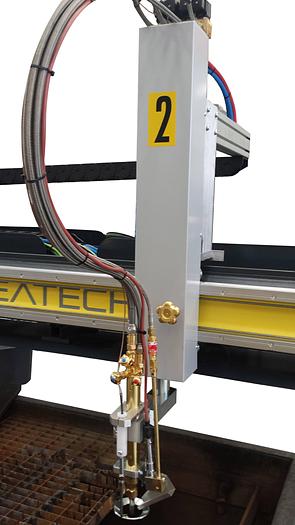

| Max number of Slave carriage (oxy) | 4 |
| Gas distribution (oxy) | Automatic |
| Max cutting thickness (oxy) | 6 in. (150 mm) |
| Gas for oxy flame | Oxygen, propane, methane, acetylene |
| Max plasma power | Up to 400 amps |
| CNC Type | SOITAAB II |
| Parametric Shape Library | Standard, up to 30 (optional from 31 to 78) |
| Data Base (Oxy + Plasma) | Optional |
