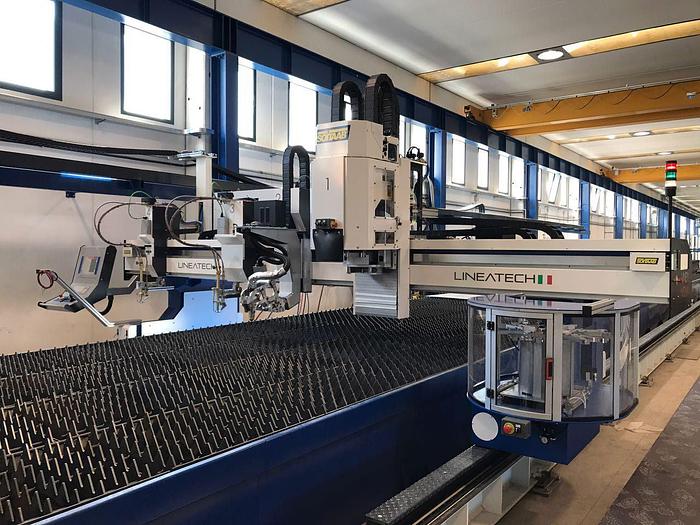

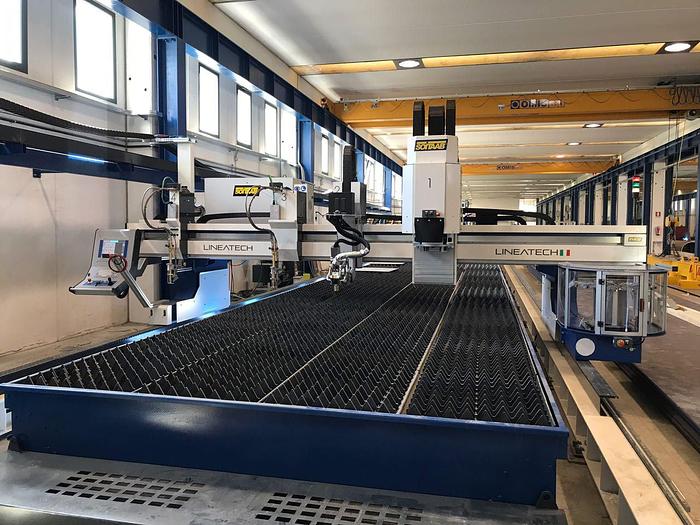

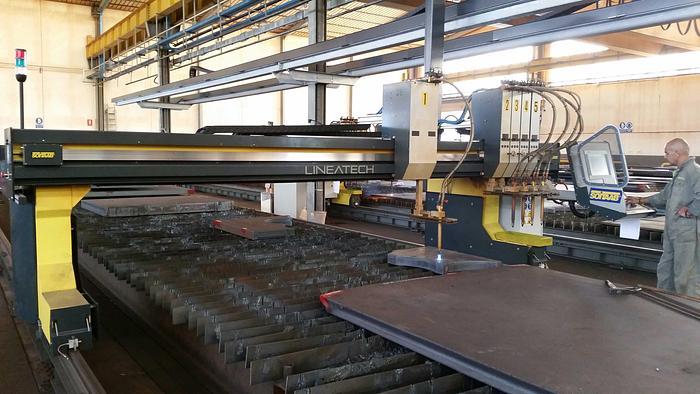

LineaTech NOVA
LineaTech NOVA
orCall 804.598.1780
Description
Main Features Dual side drive with brushless motors and digital drives Smooth tilted-tooth rack with preloaded spring assures accurate positioning with minimum backlash Absolute machine position is held in memory Cutting widths up to 26.3 ft. (8.0 m) Cutting lengths up to 262.5 ft. (80.0 m) Oxyfuel gas distribution valves fully managed by the CNC Cutting parameter data base adjusts gas pressures and flows automatically, ensuring high quality cuts and holes Automatic electronic ignition Automatic height control with both internal and external capacitive probes LCD control panel with 15 in TFT color touch screen Max number of Master carriage -178 piece shape library with all cut parameters
Specifications
| Manufacturer | Soitaab |
| Condition | New |
| Rail Span (Min-Max) | 13 ft. up to 23 ft (4.0 m up to 7.0m) |
| Machine Length | 6.5 ft. (2.0 m) |
| Machine use length with 4 m rails | 6.5 ft. (2.0 m) |
| Longitudinal Rails Beam Support | HEB - STD 7 in (180 mm) |
| Transversal Beam Construction | Double |
| Transversal Guides | Roller-Bearing Guides |
| Rack | Helical Teeth |
| Longitudinal Motion | Dual Side Drives |
| Repositioning speed | 787 ipm (20 m/min) |
| Max number of Master carriage | 3 |
| Max number of Slave carriage (plasma) | 2 |
| Max number of Slave carriage (oxy) | 12 |
| Double Master | 2 plasma + 1 oxy (or combination) |
| Gas Distribution (oxy) | Automatic |

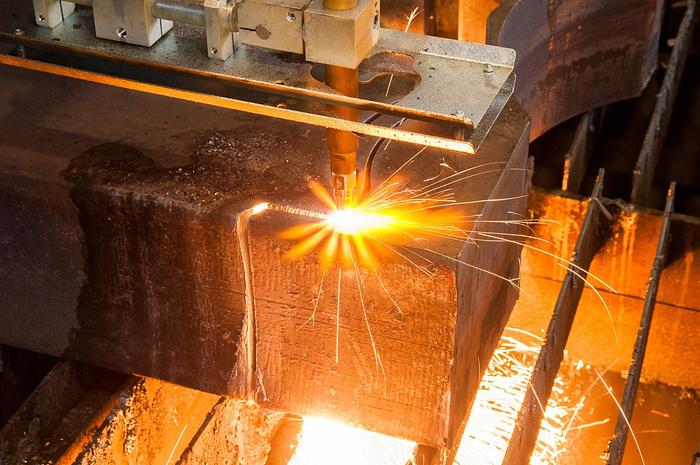

| Maximum Cutting Thickness (oxy) | 10 in – 12 in (250-300 mm) |
| Gas for Oxy Flame | Oxygen, propane, methane, acetylene |

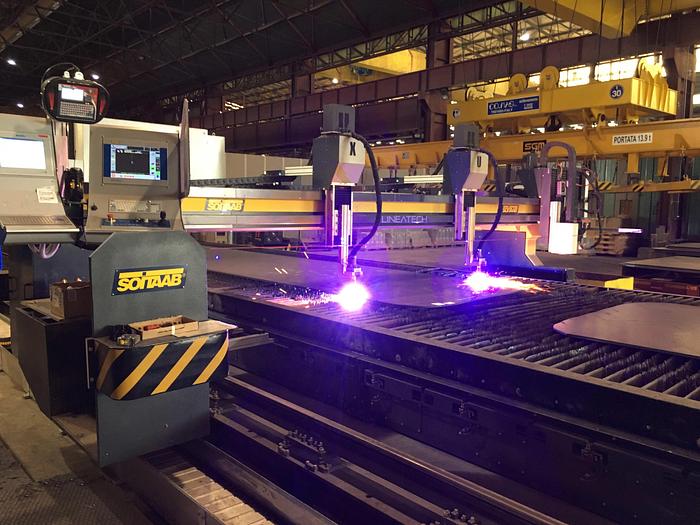

| Max Plasma Power | Up to 800 Amps |
| Plasma bevel | Yes |
| Oxy bevel | MR + -90° |
| Drilling Unit Type | ISO 30 for prehole | ISO 40 internal cooling |
| Tool Changer Type | Automatic (6 or 12) |
| Tubo-cut Type (pipe cutting) | Manual lifting (automatic optional) |
| Pipe Diameter | 3 in - 25.5 in 76mm-650mm |
