MTX Plus Flex 12 Hybrid 1250/30
MTX Plus Flex 12 Hybrid 1250/30
orCall 804.598.1780
Description

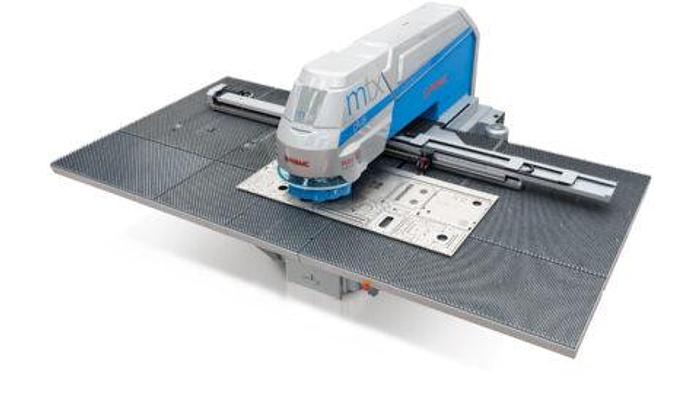

Euromac’s MTX Hybrid Flex 12
12 station turret Hybrid Hydraulic (Flex) Punch 50″ throat.
33 US Tons
Working area of up to 8×4′ (2500 x 1250 mm) without repositioning.
Punching speed:
– up to 1000 strokes per minute for nibbling 1 mm pitch
– up to 375 strokes per minute for punching 20 mm pitch
Specifications
| Manufacturer | Euromac |
| Model | MTX Plus Flex 12 Hybrid 1250/30 |
| Condition | New |
| MAX. PUNCHING FORCE US TON (KN) | 33 (300) |
| Y-axis ” (mm) | 50″ (1250) |
| Y-axis motors | 1 |
| X-axis ” (mm) | 98″ (2500) |

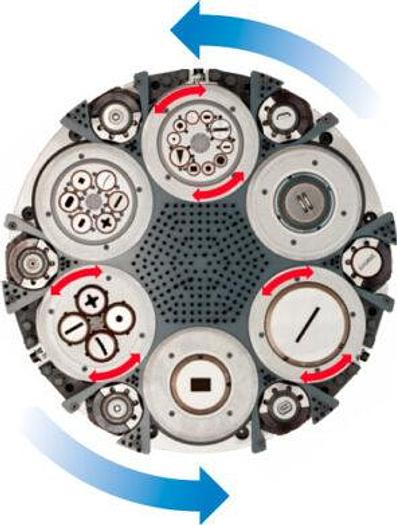

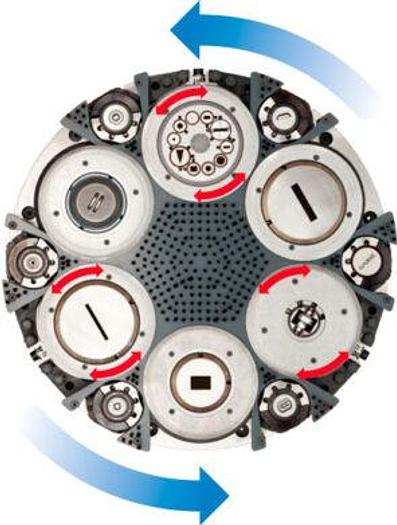

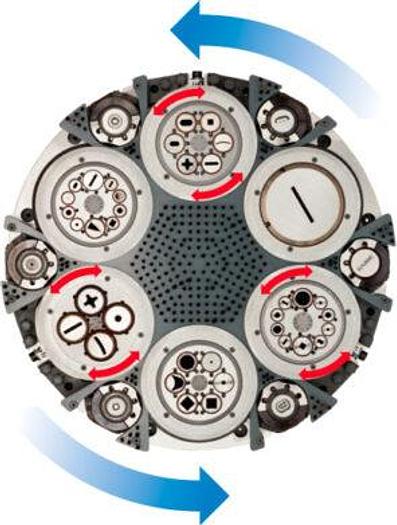

| TURRET | 12 Stations / 3 D Bi-directional Autoindex / 3 D Fixed / 6 B with Active Die System |
| DIMENSIONS | 16′ x 12′ (4850 x 3630 mm) / 18,750 lbs (8500 kg) |
