XT Electric S 1500/24-3000
XT Electric S 1500/24-3000
orCall 804.598.1780
Description
Euromac’s XT S Electric
12 station turret full electric Punch 60″ throat.
26 US Tons
Working area of 10×5′ (3000 x 1500 mm) without repositioning.
Punching speed:
– up to 780 strokes per minute for nibbling 1 mm pitch
– up to 360 strokes per minute for punching 20 mm pitch
Specifications
| Manufacturer | Euromac |
| Model | XT Electric S 1500/24-3000 |
| Condition | New |
| MAX. PUNCHING FORCE US TON (KN) | 25 (240) |
| Y-axis ” (mm) | 60″ (1500) |
| Y-axis motors | 2 |
| X-axis ” (mm) | 120″ (3000) |

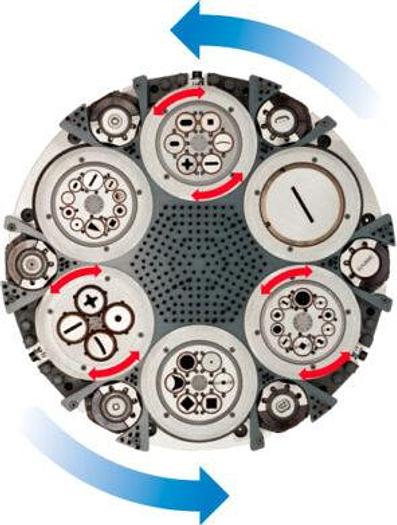

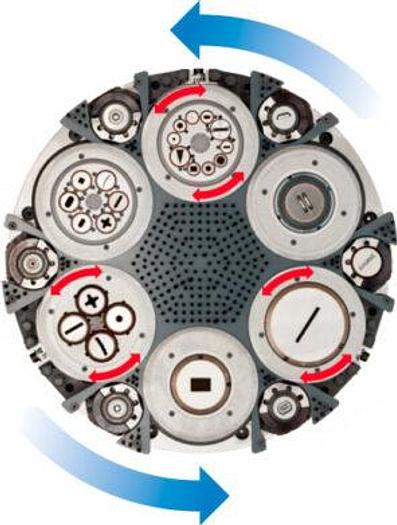

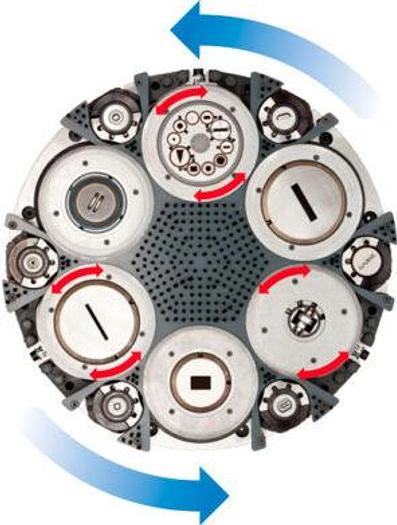

| TURRET | 12 Stations / 3 D Bi-directional Autoindex / 3 D Fixed / 6 B with Active Die System |
| DIMENSIONS | 20′ x 15 ‘ (6200 x 4600 mm) / 20,500 lbs (9300 kg) |
